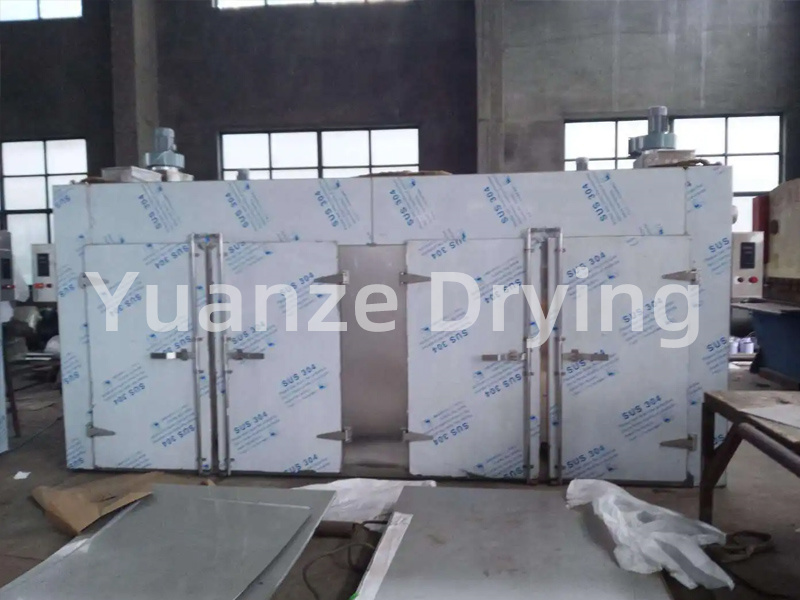

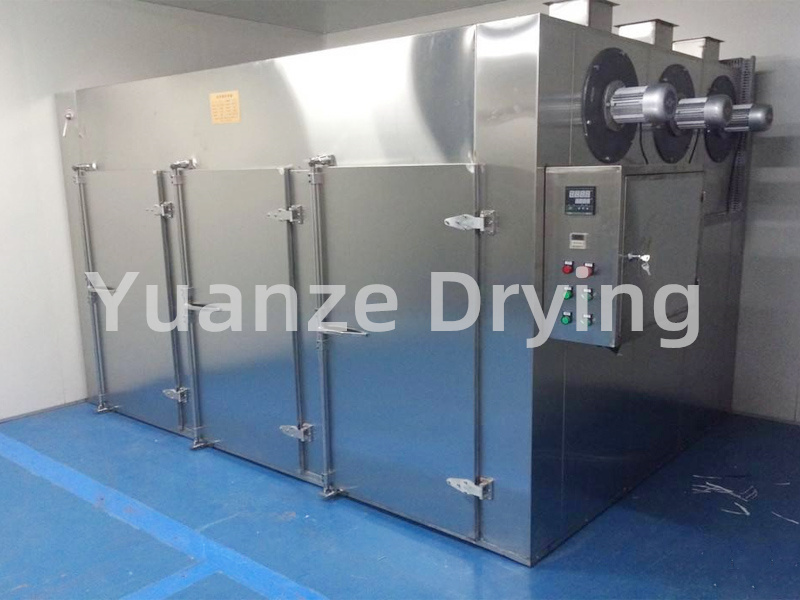

Medicinal (GMP) oven
Medicinal (GMP) oven
Description
There are three types of heating sources: steam, electricity, and electric steam.
● Operating temperature: Steam heating at 50-140 ℃, up to 150 ℃; Electric heating at 50-350 ℃;
● Temperature is automatically controlled and recorded by a recorder;
The inner walls of the box are fully welded, and each transition point adopts circular arc transition without dead corners.
The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing performance of the whole machine;
● The air inlet is equipped with a high-efficiency air filter; The dehumidification port is equipped with a medium efficiency air filter.
● Double door oven with double doors to achieve mechanical interlocking;
Each component in the oven can be quickly disassembled and installed for easy cleaning;
The control system is equipped with text displays and touch screens for selection; The entire machine complies with GMP requirements
| Model specifications | Each drying amount (Kg) | fan power (KW) | Steam consumption (Kg/h) | Drying car(vehicle) | Baking tray(Only) | External dimensions L × W × H (mm) | Temperature difference between upper and lower parts (℃) |
| GMP-0 | 35 | 0.45 | 8 | / | 16 | 1130×1100×1750 | ±2 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300×1200×2000 | ±2 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300×2200×2000 | ±2 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430×2200×2000 | ±2 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460×2200×2290 | ±2 |
